Meshpoint

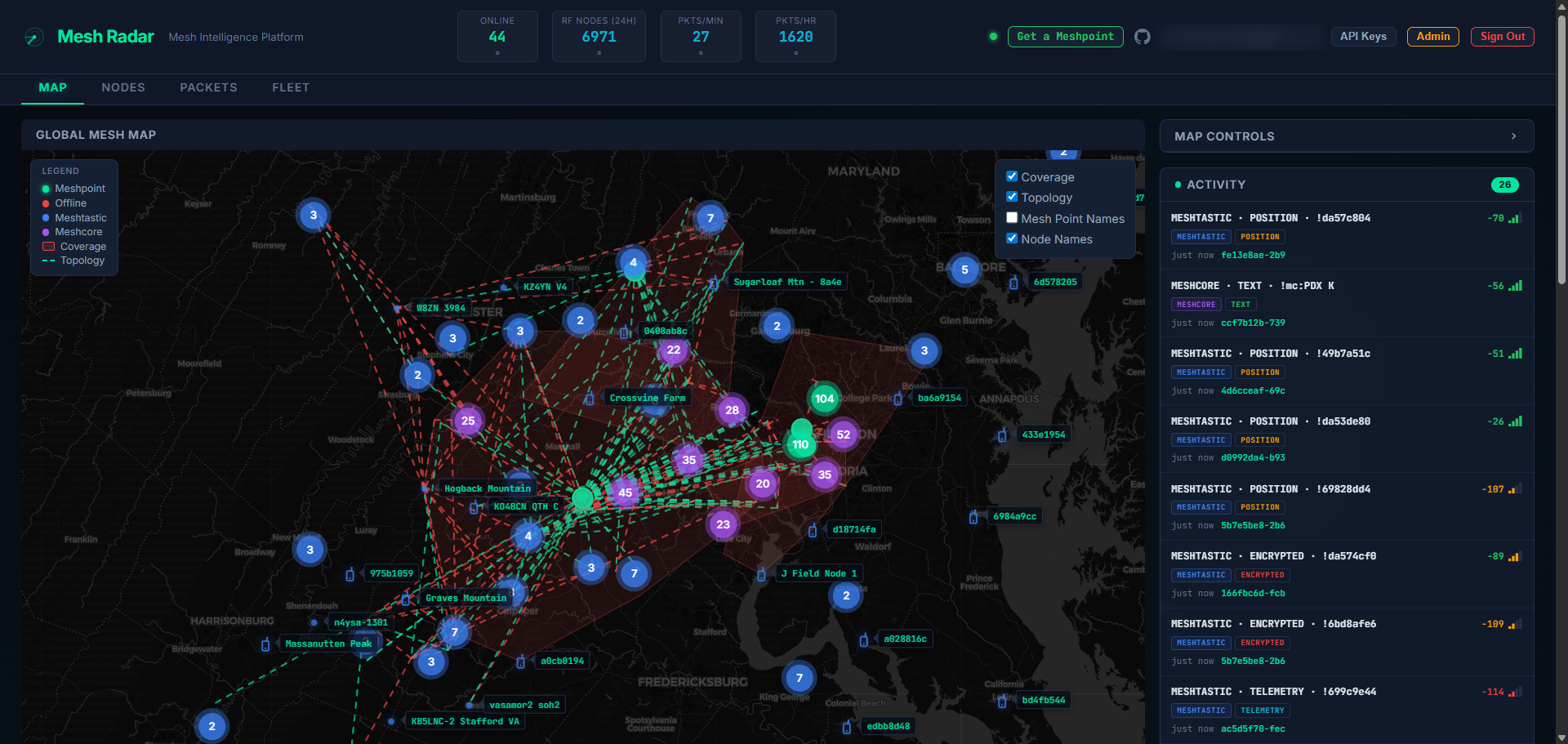

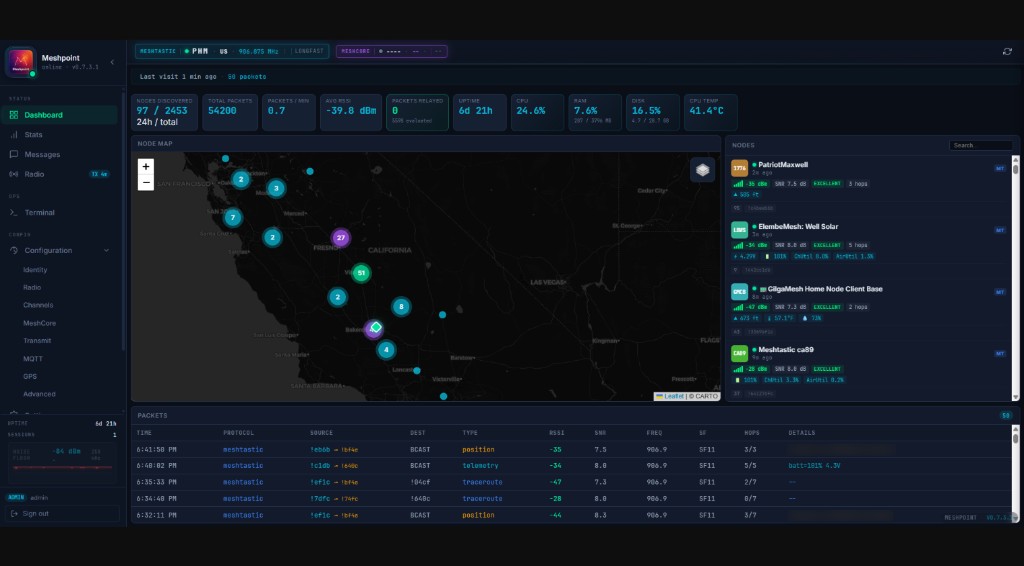

Gateway / Bridge BetaOpen-source Meshtastic and MeshCore base station running on Raspberry Pi 4 with an SX1302/SX1303 LoRa concentrator. Receives on 8 channels simultaneously (SF7–SF12), transmits natively with up to 27 dBm, and provides a full browser dashboard with chat, node discovery, radio configuration and live packet feed. MeshCore traffic supported through a USB companion. Optionally syncs to Meshradar cloud for multi-site mesh intelligence.
- Maintainer
- KMX415 ↗
- Kind
- Gateways & Bridges
- Maturity
- Beta
- Language
- Python
- Licensing
- Open source
- License
- AGPL-3.0-only
- Platforms
- Linux Raspberry Pi

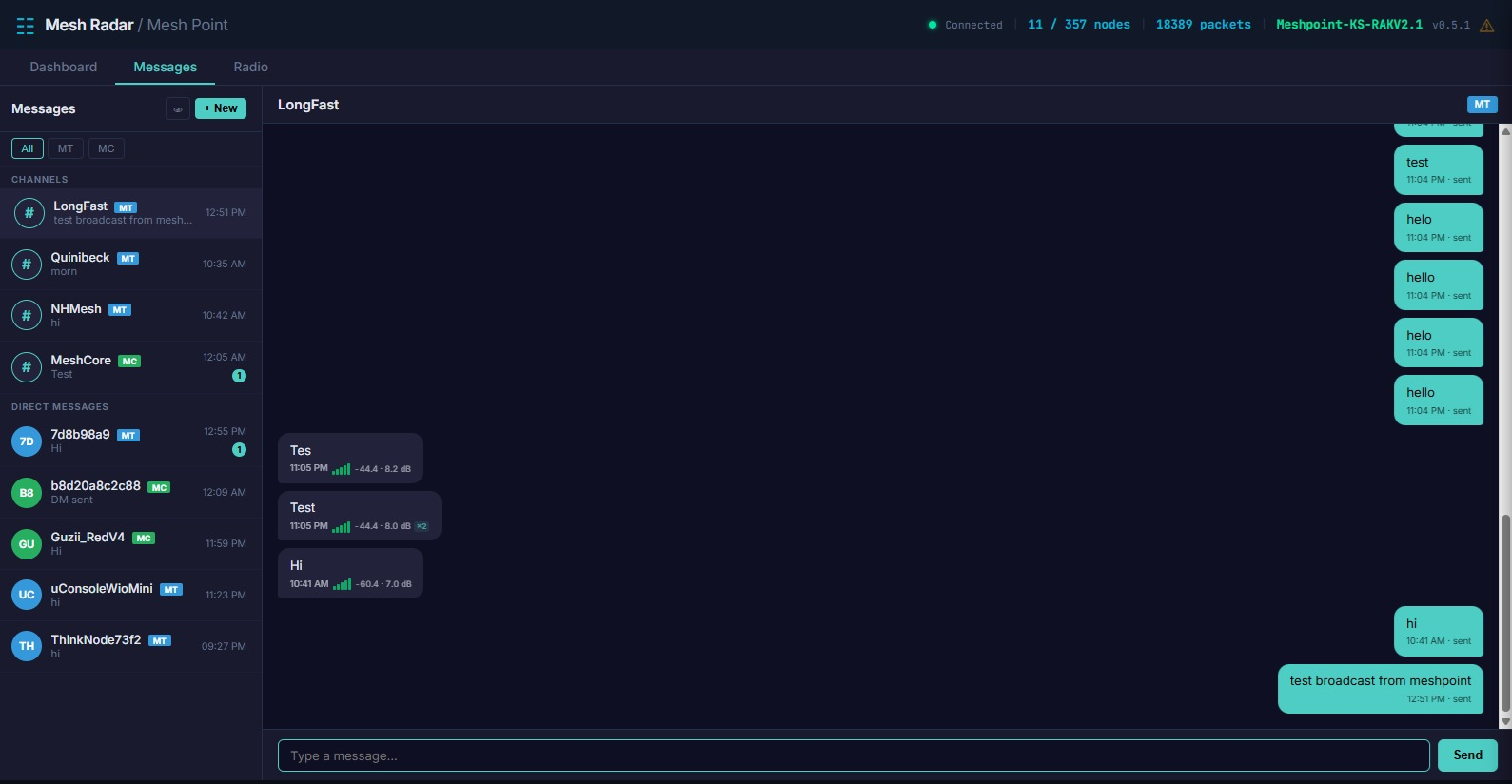

Screenshots
Capabilities
Interfaces
- ✓ Web
Connections
- ✓ spi
- ✓ USB
- ✓ HTTP
Capabilities
- ✓ Messaging
- ✓ Channels
- ✓ Monitoring
- ✓ Telemetry
- ✓ Packet analysis
- ✓ Mapping
- ✓ Node configuration
Node role
- ✓ Repeater
- ✓ Observer
Install
- Source Open ↗
Project signals
popularity 2026-07-20 verification 2026-07-20
- GitHub stars
- 211
- Forks
- 33
- Watchers
- 7
- Open issues
- 32
- Contributors
- 7
- Release downloads
- 0
- Latest downloads
- 0
- Source available
- Yes
- Releases available
- No
- Signed releases
- No
- CI builds
- Yes
- Documentation
- Yes
- SX1302/SX1303 concentrator with 8-channel simultaneous reception (SF7-SF12).
- Dual-protocol capture: Meshtastic via concentrator and MeshCore via USB companion.
- Smart relay feature (experimental) re-broadcasts captured packets identity-preserving.
- Supports US915, EU868, ANZ915, IN865, KR920 and SG923 regions.
